溶接機
![溶接機](/products/semiconductor/usage/__icsFiles/afieldfile/2024/01/15/icon_welding_blue.webp)
溶接機は、2つ以上の金属部材に熱または圧力を加え、溶融・一体化する装置です。
自動車のボディ溶接などに使われ、金属を圧着させて電流を流し、その抵抗熱で金属を溶かし接合するスポット溶接などがあります。
自動車のボディ溶接などに使われ、金属を圧着させて電流を流し、その抵抗熱で金属を溶かし接合するスポット溶接などがあります。
回路例

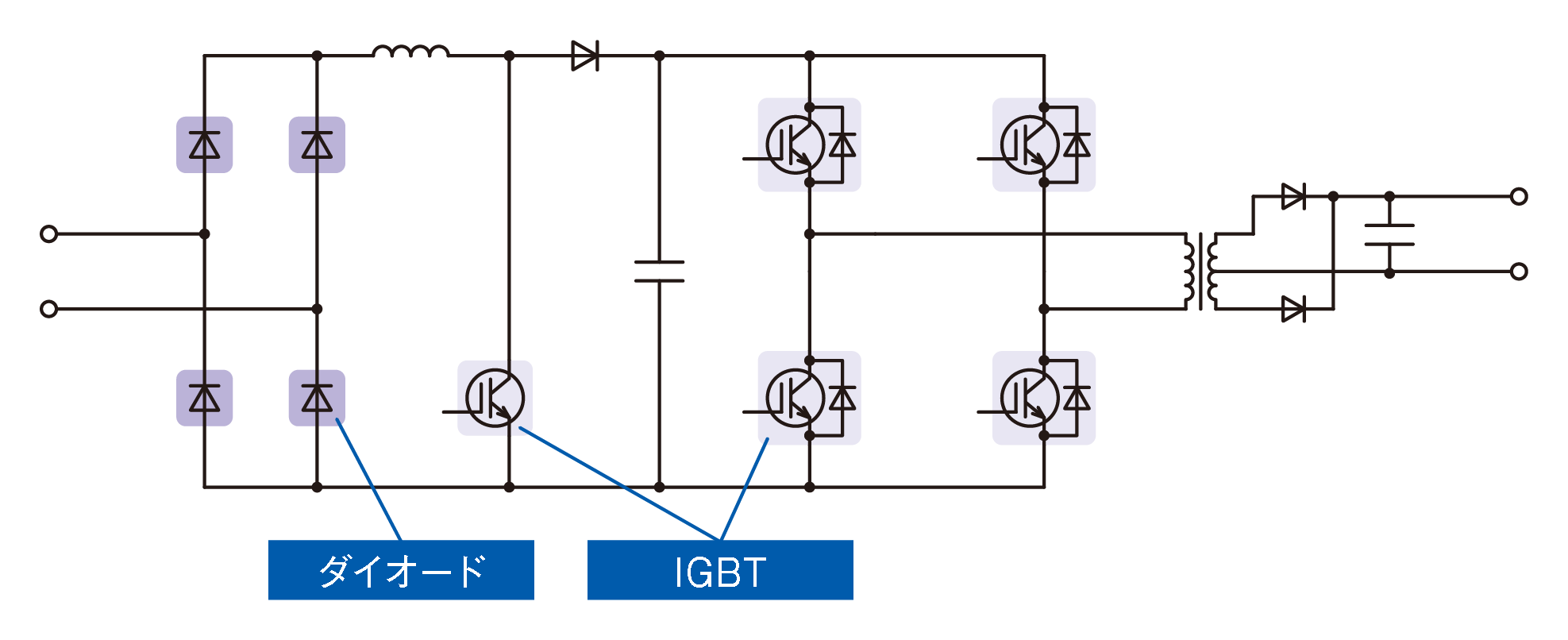

![図1. Hard switching type](/products/semiconductor/usage/__icsFiles/afieldfile/2023/11/10/circuit01d.png)
図1. Hard switching type
![図2. Soft switching type (ZVS)](/products/semiconductor/usage/__icsFiles/afieldfile/2023/11/10/circuit02rd.png)
図2. Soft switching type (ZVS)

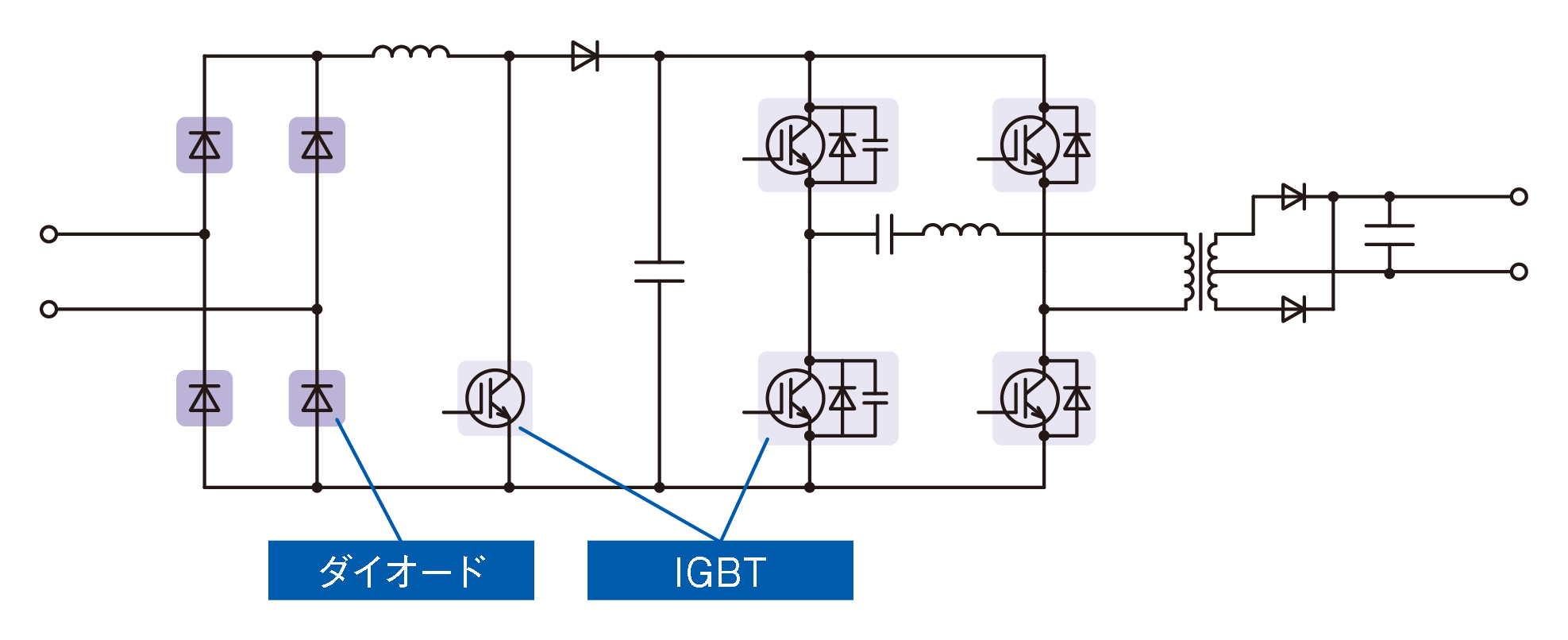

![図3. Soft switching type (ZVZCS)](/products/semiconductor/usage/__icsFiles/afieldfile/2023/11/10/circuit03f.png)
図3. Soft switching type (ZVZCS)

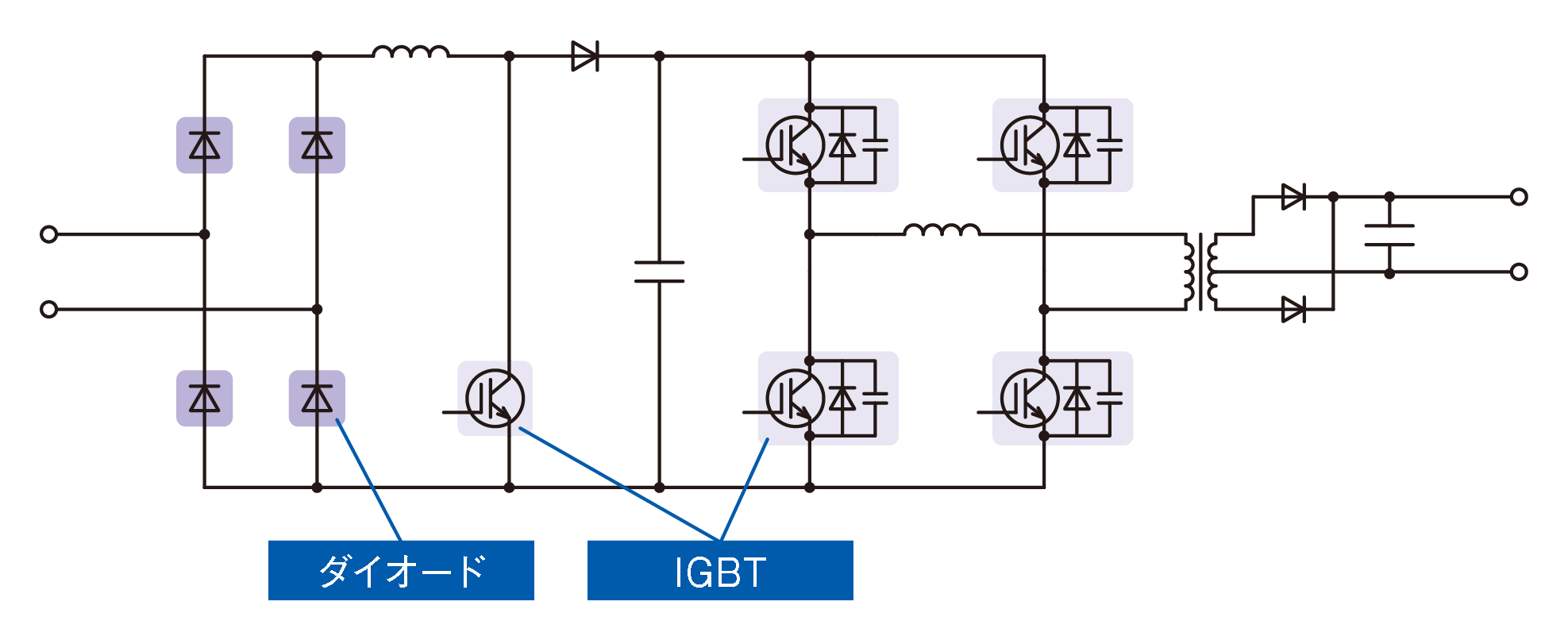

![図4. Phase Shift Soft switching converter (ZVZCS)](/products/semiconductor/usage/__icsFiles/afieldfile/2023/11/10/circuit04f.png)
図4. Phase Shift Soft switching converter (ZVZCS)
